Maximum width of split | 50 mm |
Maximum width of grooving | 50 mm |
Maximum depth of grooving | 0.15 m (6”) |
Maximum diameter of bamboo for knot cleaning | 0.2 m (8”) |
Maximum width for planning | 0.33 m (13”) |
Maximum width of designing or three side planning | 50 mm (2”) |
Diameter of polishing plate | 0.2m (8″) |
Dimensions of the machine, in metres | 1.3 X 1.3 X 0.65 |
Net weight, in kilograms | 400 kgs |
Maximum diameter of C.T.C.S. | 0.45 m (18″) |
Power Consumption | 2.3 KW (3 HP) |

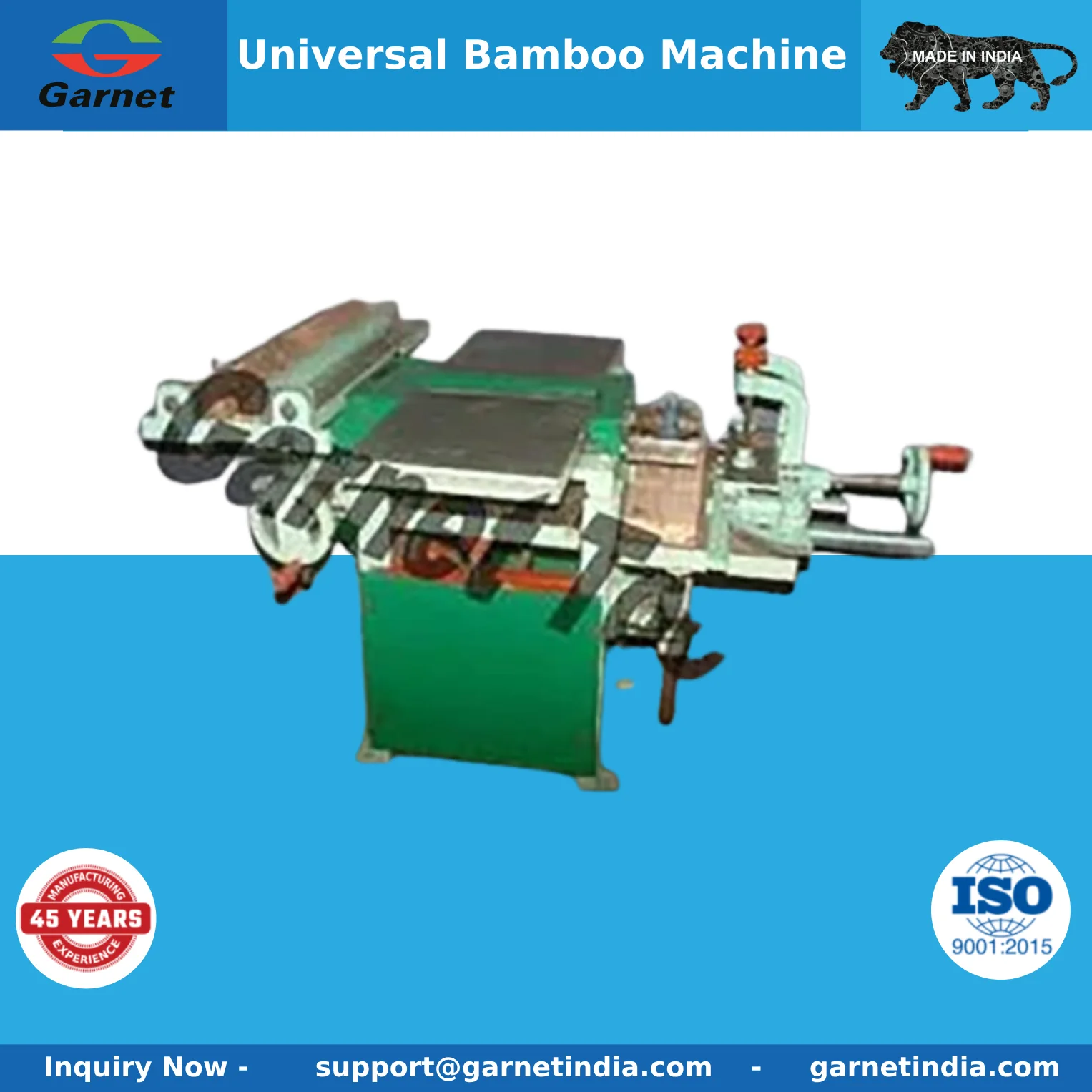

Universal Bamboo Machine
₹95,000.00
Our Universal Woodworking cum Bamboo Application Machine is capable of doing a number of operations just by changing cutters and fixtures.
Tools like circular saws, slotting saws, knot removing cutters, parallel splitting saws, planning blades, designing cutters, three side planning cutter set, drills of various sizes, polishing plate etc. can be used on the same machine.
These tools can do jobs like cutting, angle cutting, grooving, slotting, removing external knot and internal knot, skin finishing, parallel splitting, planning and thickness planning, designing, three side planning, drilling etc.
Hence, the machine is ‘universal’ in itself, i.e. capable of doing nearly all the operations which a small workshop of bamboo and wood requires.
